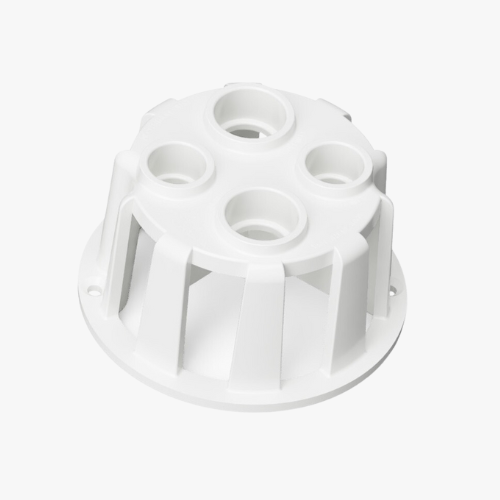

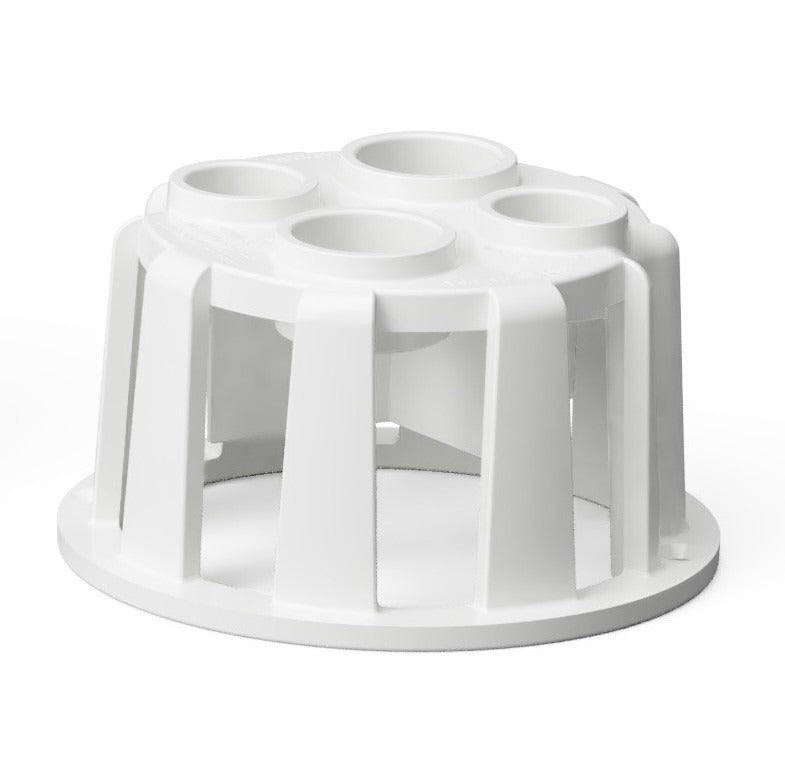

PDAG2 – 2” Round Air Gap

Multi-Port Drain Adapter Applications Requiring Air Gaps

First-of-its-kind, two-stage integrated air gap ensures code compliance and minimizes splashing for up to four drain connections—saving space, cost and time.

Complies with:

ASME A112.6.3
Floor drains

ASME A112.6.7
Sanitary floor sinks

Certified To:
ASME A112.1.2
Air gaps for use with plumbing fixtures, appliances & appurtenances

DIMENSIONS
4.87" D x 2.75" H

WEIGHT
6.3 oz

INPUTS
1/2" Female Socket (x2)
3/4" Female Socket (x2)

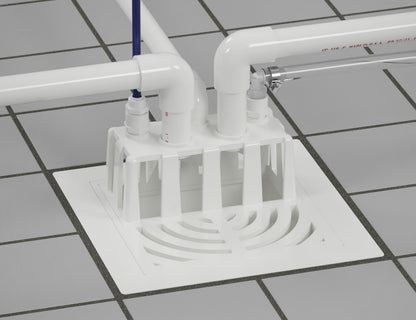

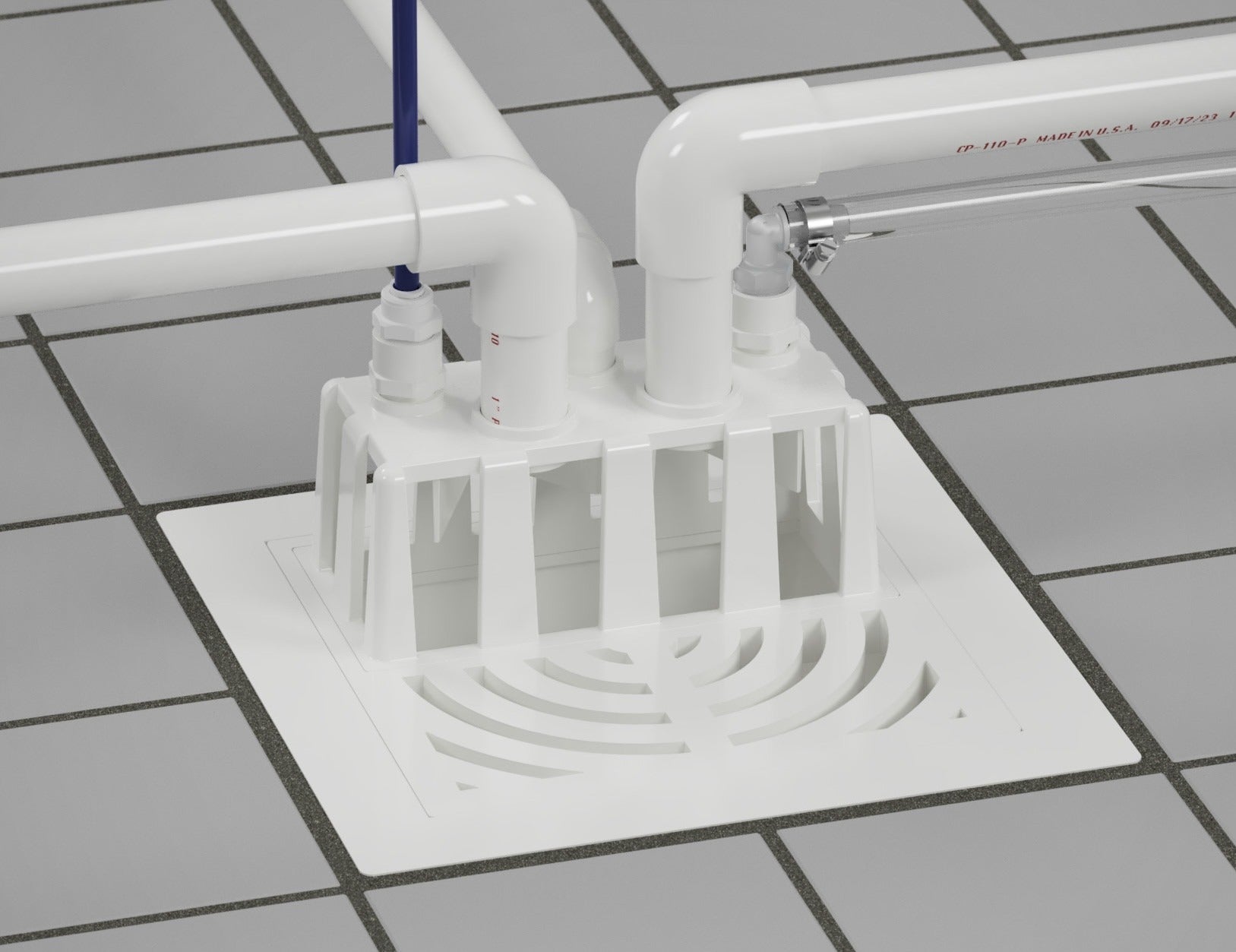

Fits standard 3" drain with 4 3/8" screw mount diameter

Industries & Typical Applications

• Residential, commercial & light industrial
• Food service & appliance drain lines
• Water treatment, softeners & general filters
• Reverse osmosis & deionization systems
• Dialysis systems
