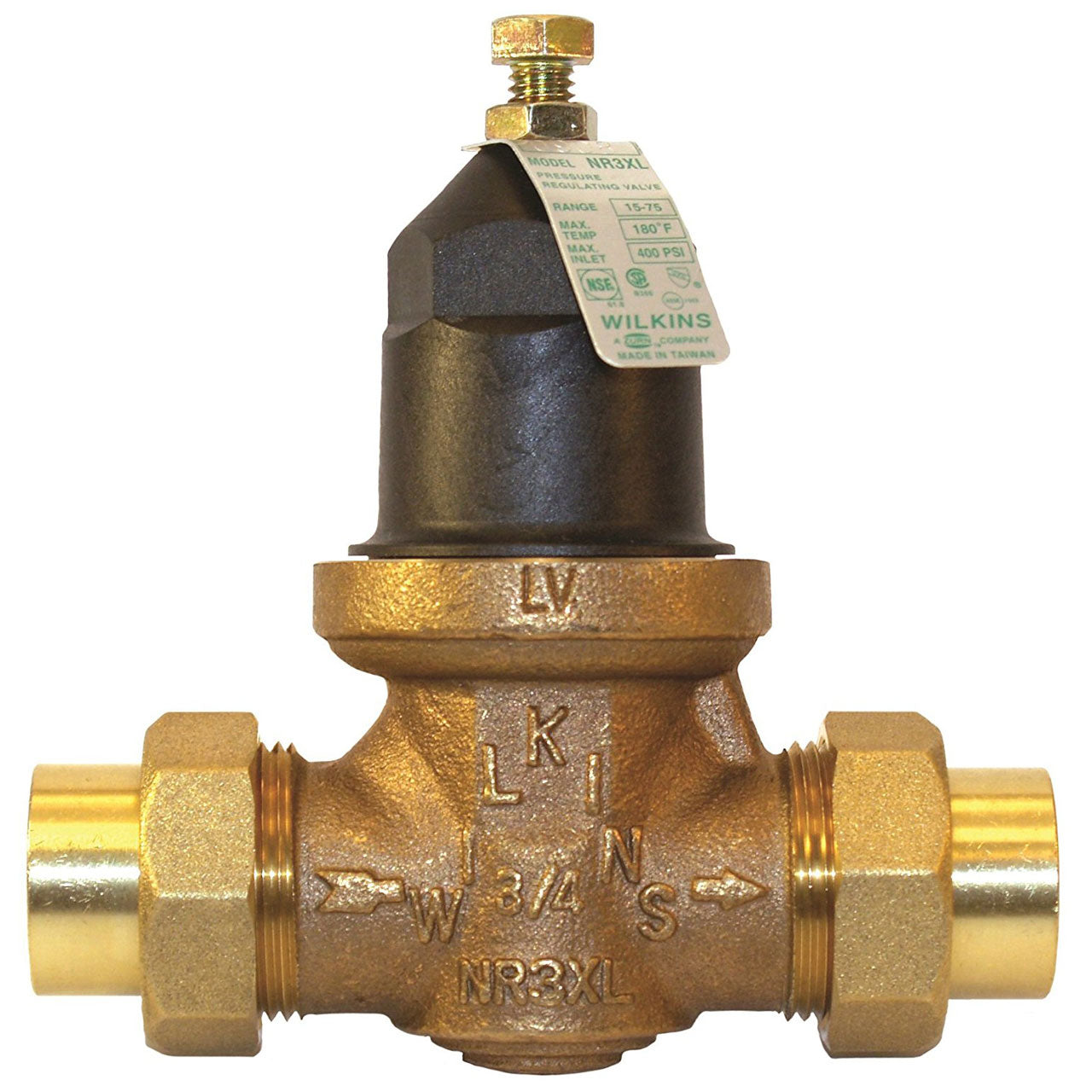

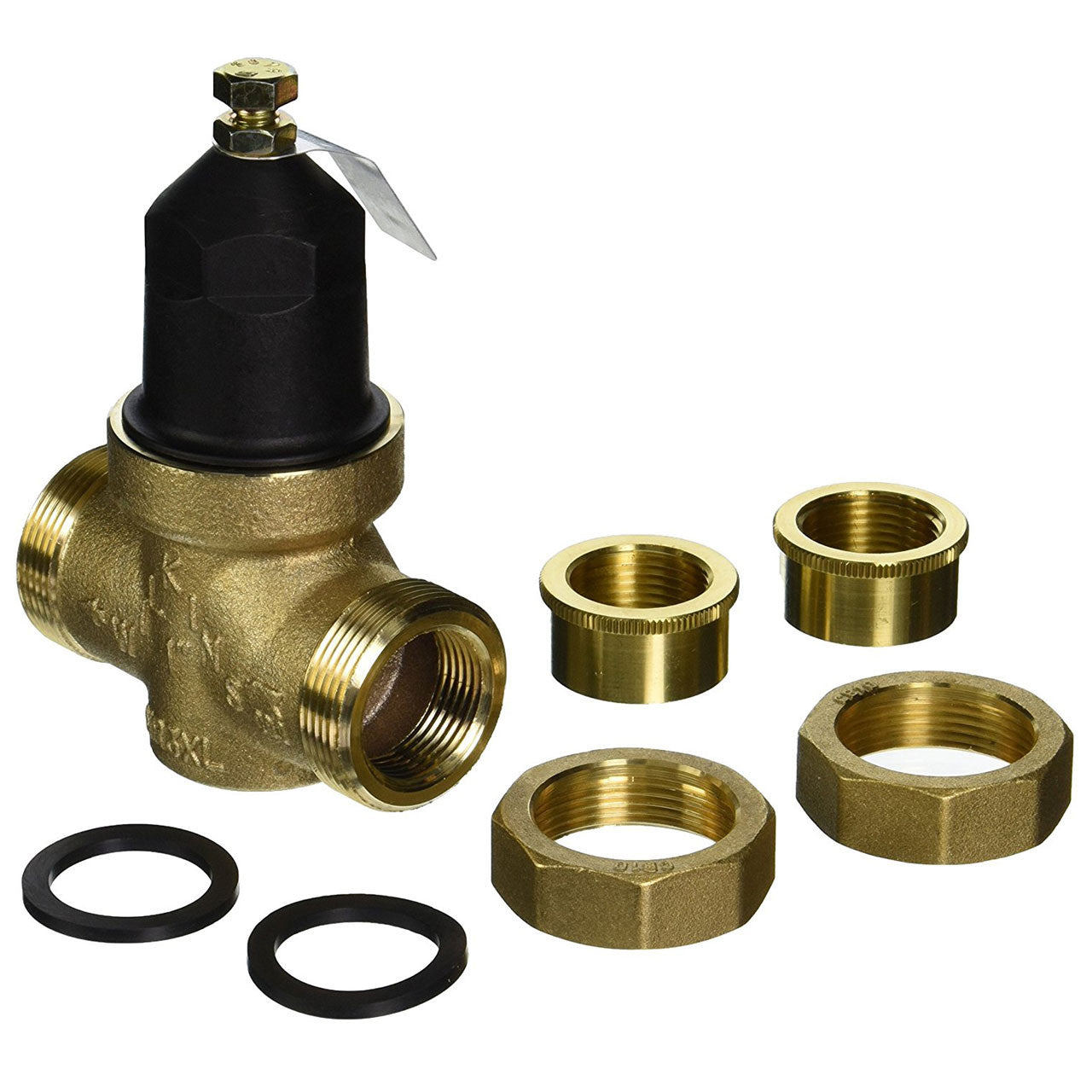

Water Pressure Reducing Valve - Dual Union Connection

The Zurn NR3XL Pressure Reducing Valves with Dual Union connections are Ideal for use where Lead-Free valves are required. Designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The integral strainer makes this device most suitable for residential and commercial water systems that require frequent cleaning of sediment and debris. The direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion. The balance piston design enables the regulator to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes. Available in ¾” FNPT and 1” FNPT Sizes.

Features:

• Max. working water pressure (1/2” - 1-1/4”) 400 psi
• Max. working water pressure (1-1/2” - 2”) 300 psi
• Max. working water temperature 140°F
•  Reduced pressure range (1/2” - 1-1/4”) 15 to 75 psi
• Reduced pressure range (1-1/2” - 2”) 25 to 75 psi
• Factory preset 50 psi Threaded connections (FNPT) ANSI B1.20.1
•  Copper connections (FC) ANSI B16.22
• CPVC tailpiece: Max. Hot water temp. 140°F @ 100 psi
• Cold water rated temp. 73.4°F @ 400 psi

Specifications:

• ¾” FNPT
• 1” FNPT
